Microaces Brushless Electronics Pack 1S with SR3X Stabilization


Brushless 1S Receiver for single cell operation PLUS two 1.7g micro servos for rudder and elevator control.

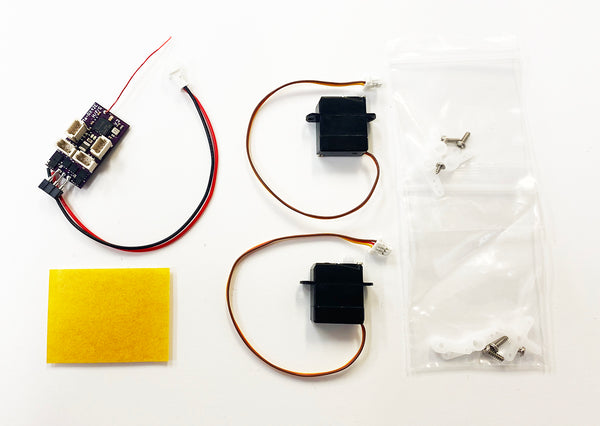

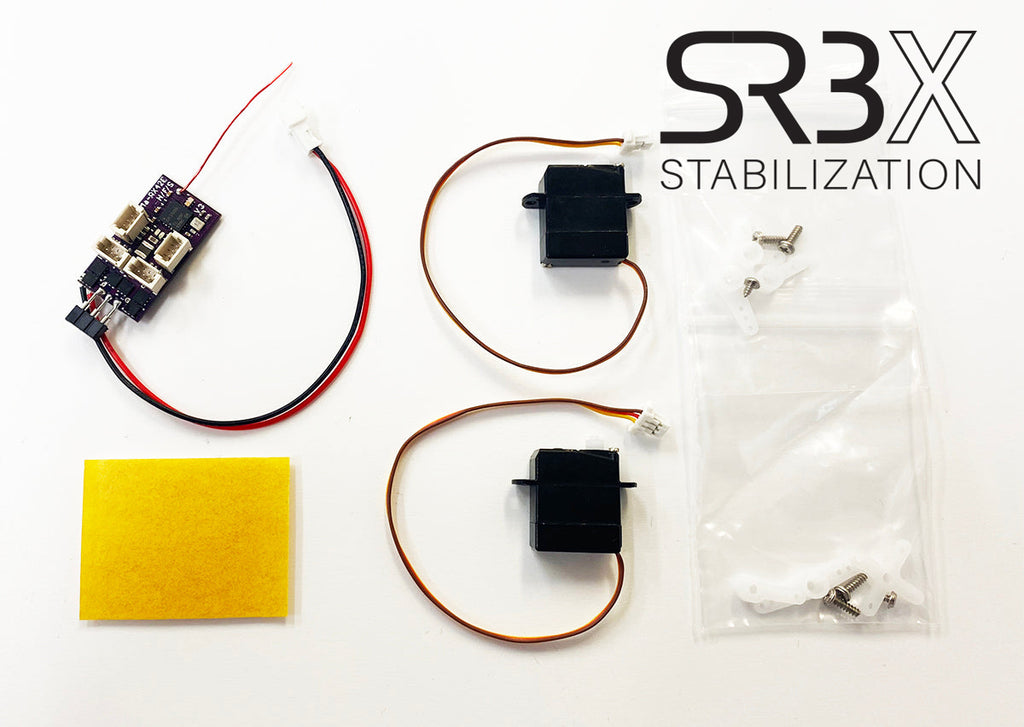

Pack Includes:

  • Micro 5 channel 2.4GHz receiver, with 5A Brushless ESC & SR3X Stabilization
  • 2 x 1.7g Micro digital rotary servos with mini JST connectors
  • Double sided servo tape

An incredibly small and lightweight brushles receiver for models from 60 to 120g.

Receiver dimensions (WxLxH): 12 x 22 x 6.5mm, Weight: 1.7g including leads & motor connectors.

UM Style Battery Connector

3 Pin (round) Brushless Motor Connector

Available compatibility: Spektrum DSM2/X, Futaba S-FHSS or FrSky D8.

Recommended for use with:

AP05 5000kV Brushless Motor

GWS5030 prop and adapter

1.7g micro digital servos with mini JST connectors

AND now ALSO includes a programmable* 3 axis stabilization system, integrated into the receiver.

  • Two programmable levels of stabilization
  • Separate gain control over each axis within each level of stabilization.

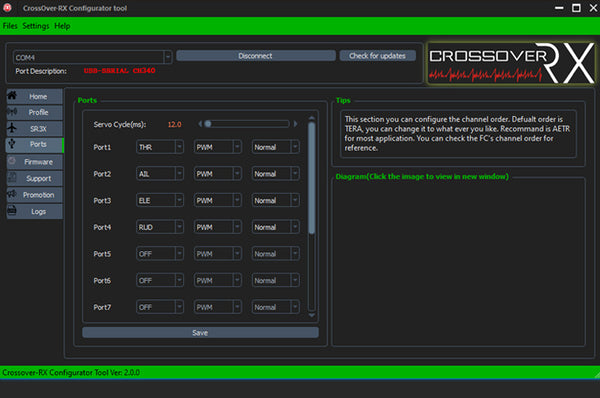

  • Full control over allocation of ports on the receiver through app.

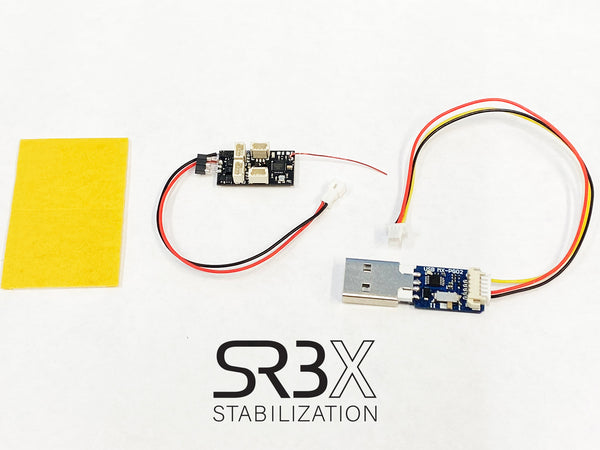

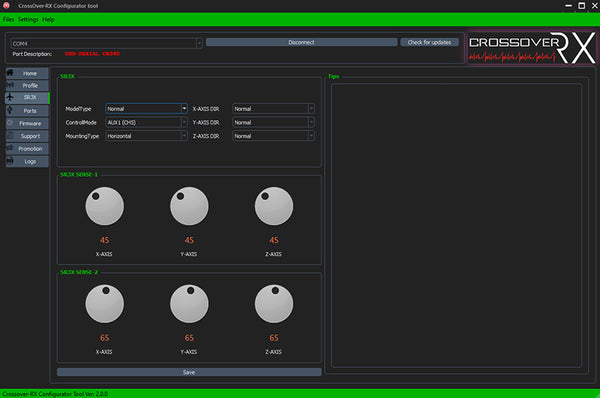

* Using PG02 USB interface tool and FREE Crossover RX app. for Windows

Recommended Battery:

150-300mAh 3.7V 1S Lipo 25-45C (Example E-Flite EFLB1501S45)


Click below to download app:

Crossover RX Windows Interface

Download Brushless Receiver Instructions
