Hansa-Brandenburg W.12 Prototype

£99.00

NOW INCLUDES Brushless Motor & 3D Detail Pack

Order before 14th Feb to get FREE Static Display Pack included

Shipping from 1st week in February 2026

German twin seat fighter Floatplane

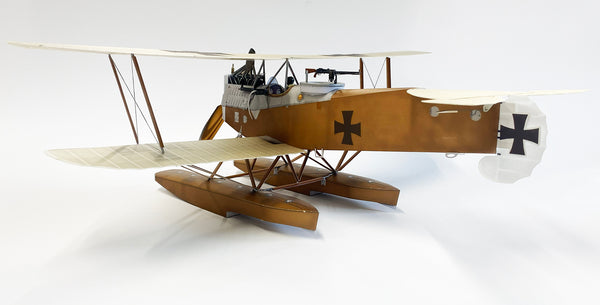

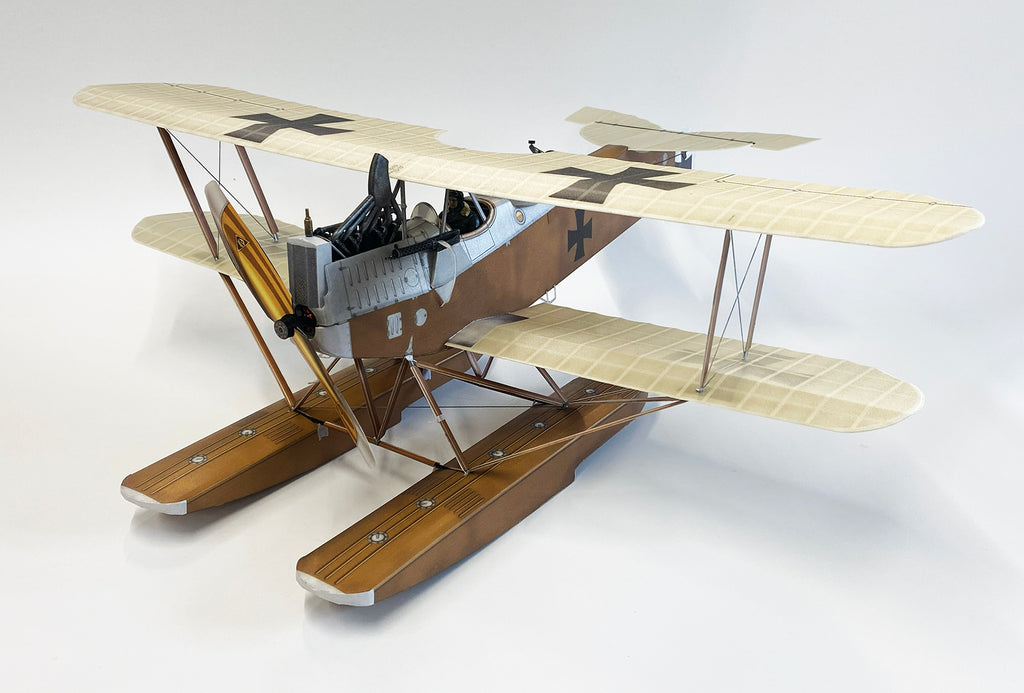

The Microaces Hansa-Brandenburg W12 kit replicates one of the most successful German naval float planes of WWI. Not only is the unusual configuration of the aircraft tail, the floats and strut-work accurately modeled, but we've gone to great lengths to include intricate details that make this kit a worthy static display model as well as an excellent scale radio controlled flyer.

Making History

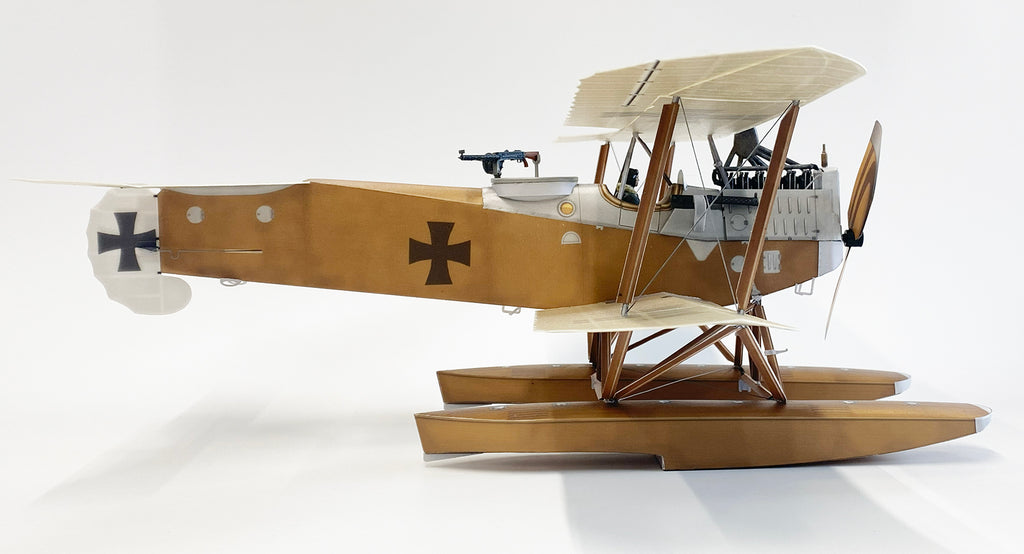

The aircraft represented in this NEW livery for 2026 is that of the initial protoypes tested in Jan/Feb of 1917 flown by Walter Stagge. He initially experienced instability in the aircraft, even having to jettison ballast from the aircraft in flight to ensure a safe landing. This was resolved by some rapid overnight engineering that moved the upper wing rearward by 350mm. The aircraft is in it's varnished ply and doped linen livery prior to any service paint scheme being applied.

The Hansa Brandenburg W.12 was very sparsely rigged with very few flying wires, instead relying on its structure and A-frame strut configuration. This makes the Microaces kit an ideal choice for those that enjoy an involved and comprehensive build but aren't keen on all that string!

From 2026 this kit NOW INCLUDES...

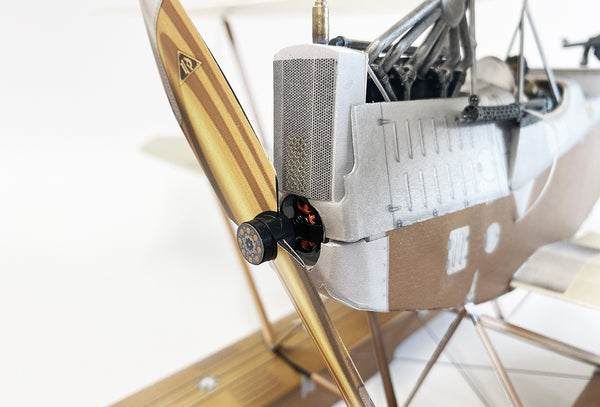

This Microaces kit is now supplied as standard with the Microaces AP05 Brushless Motor PLUS a comprehensive 3D Printed Detail Pack

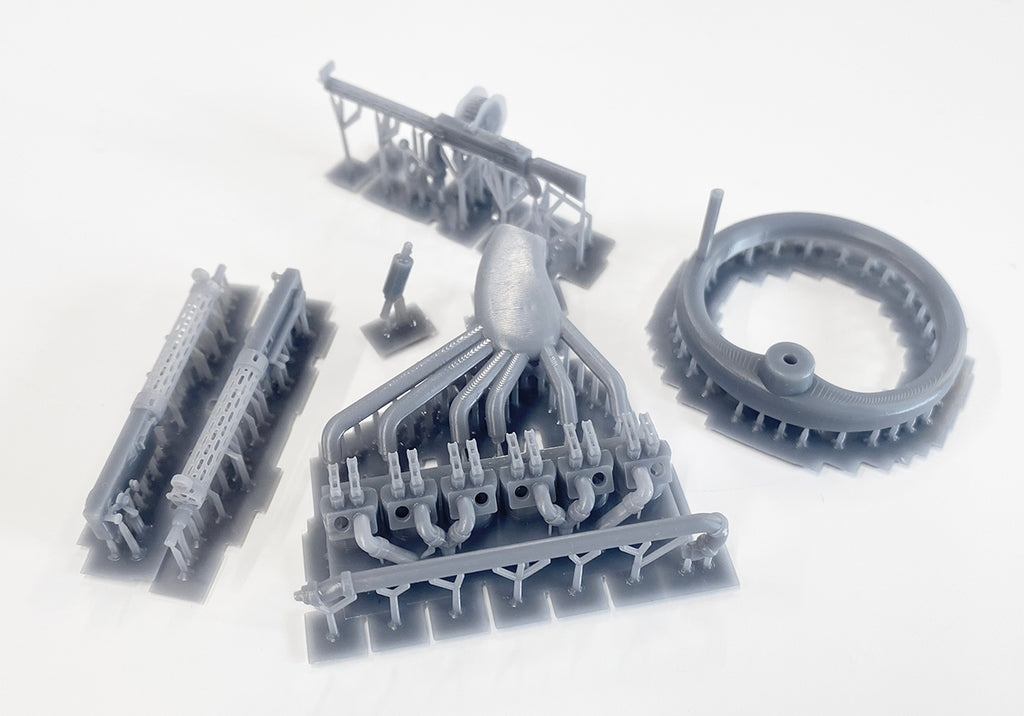

The 3D Printed Detail Pack includes:

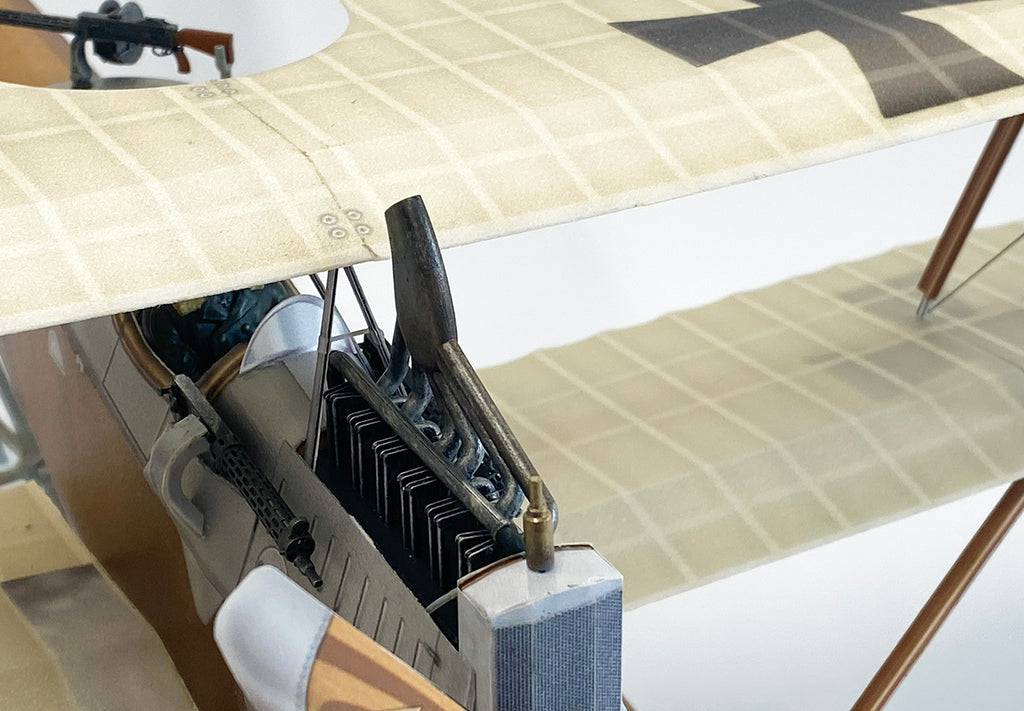

6 cylinder Mercedes D.III engine head, distinctive exhaust stack and radiator cap
2 x Early Spandau LMG 08/15 machine guns

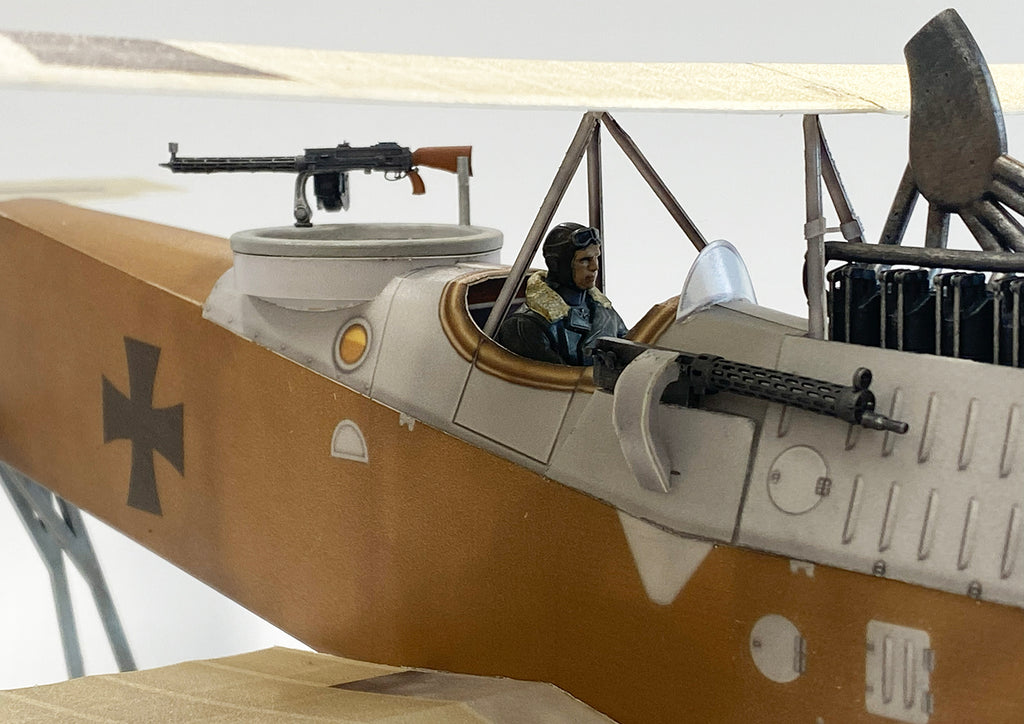

Parabellum MG14 machine gun & mounting ring

To complete the kit for radio controlled flight, you will need an All In One (AIO) BRUSHLESS Receiver that's compatible with your transmitter.

Selecting the right receiver to complete your kit:

The Microaces AIO 5CH Brushless micro receiver is available with the following protocols. If unsure, check your transmitter instruction manual to find out which protocol(s) it uses. Then select the compatible receiver protocol below to view the appropriate receiver to add to your order.

DSM2/X Compat.

S-FHSS Compat.

FrSky D8 Compat.

FrSky D16 Compat.

AFHDS 2A Compat.

Optional Float Wheels

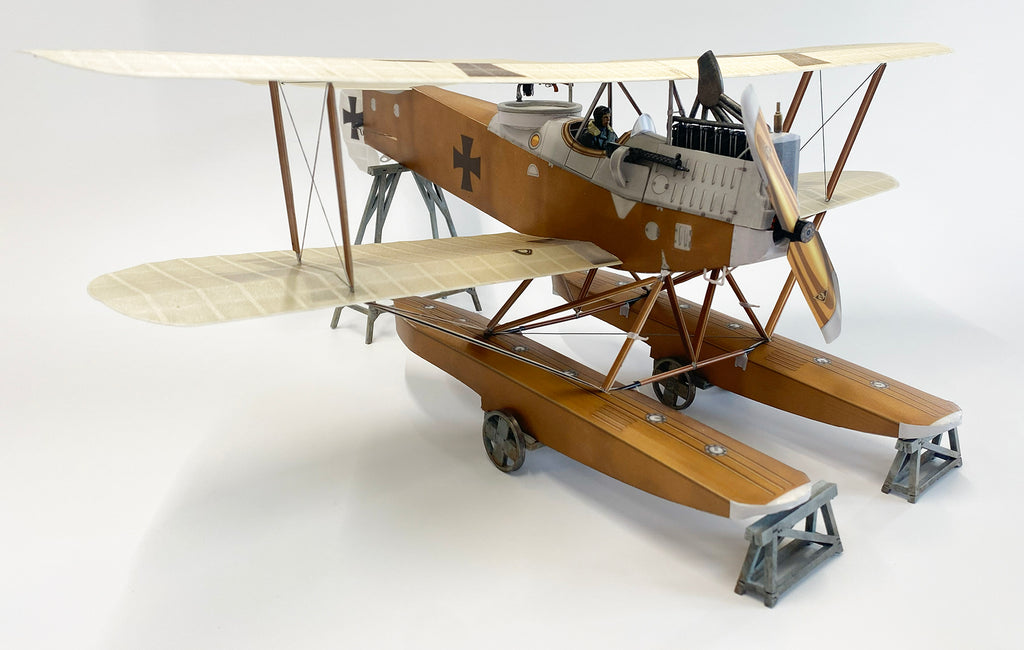

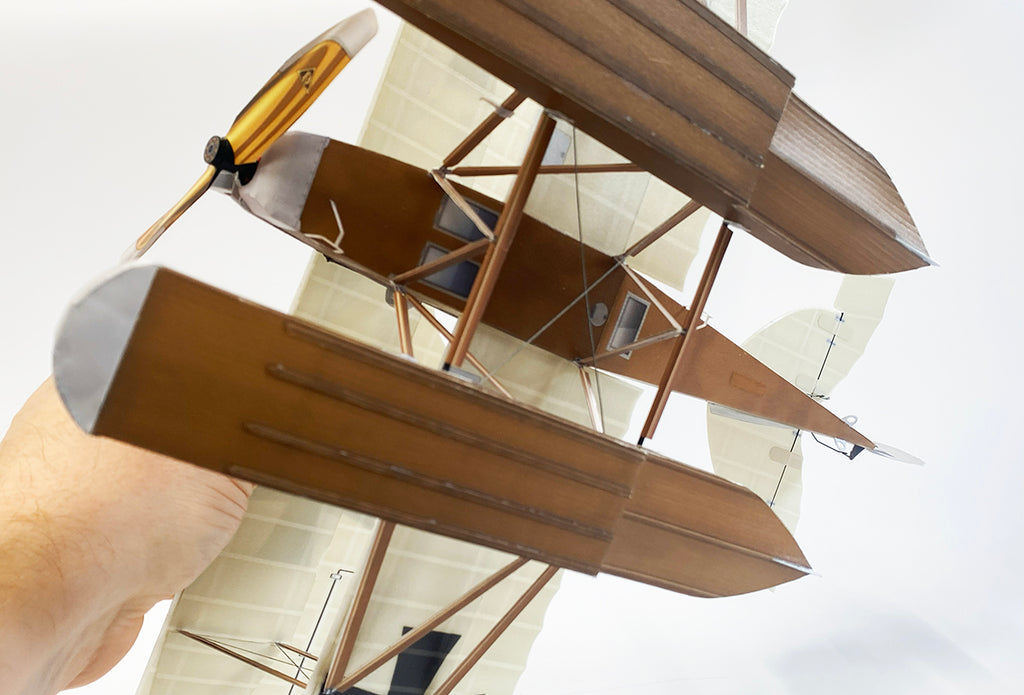

The kit comes with the option to build integrated 'hidden' wheels into the floats so the aircraft can be flown off water or the smooth surface of a sports hall.

Video

Static Display

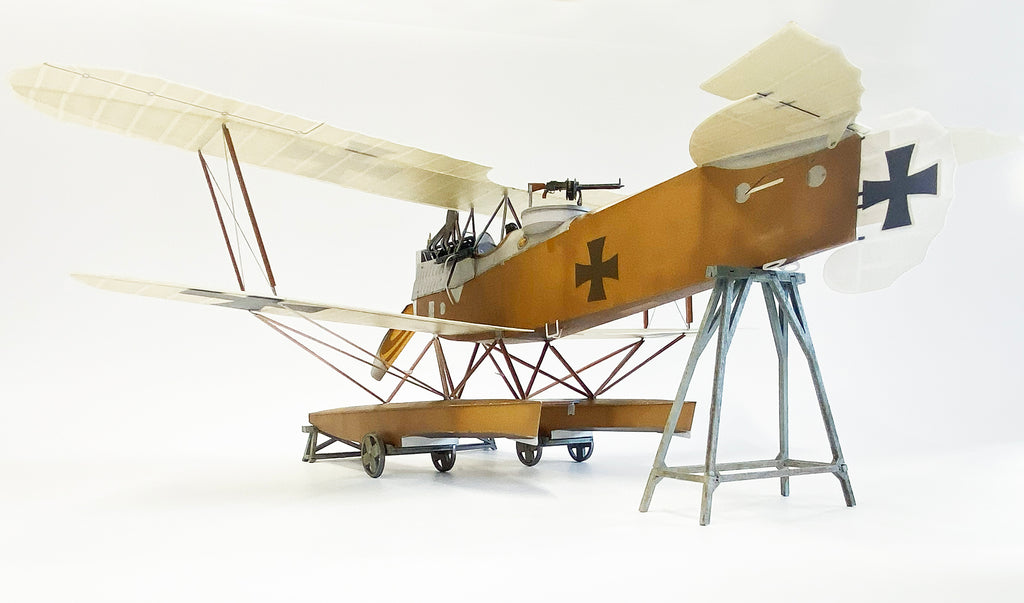

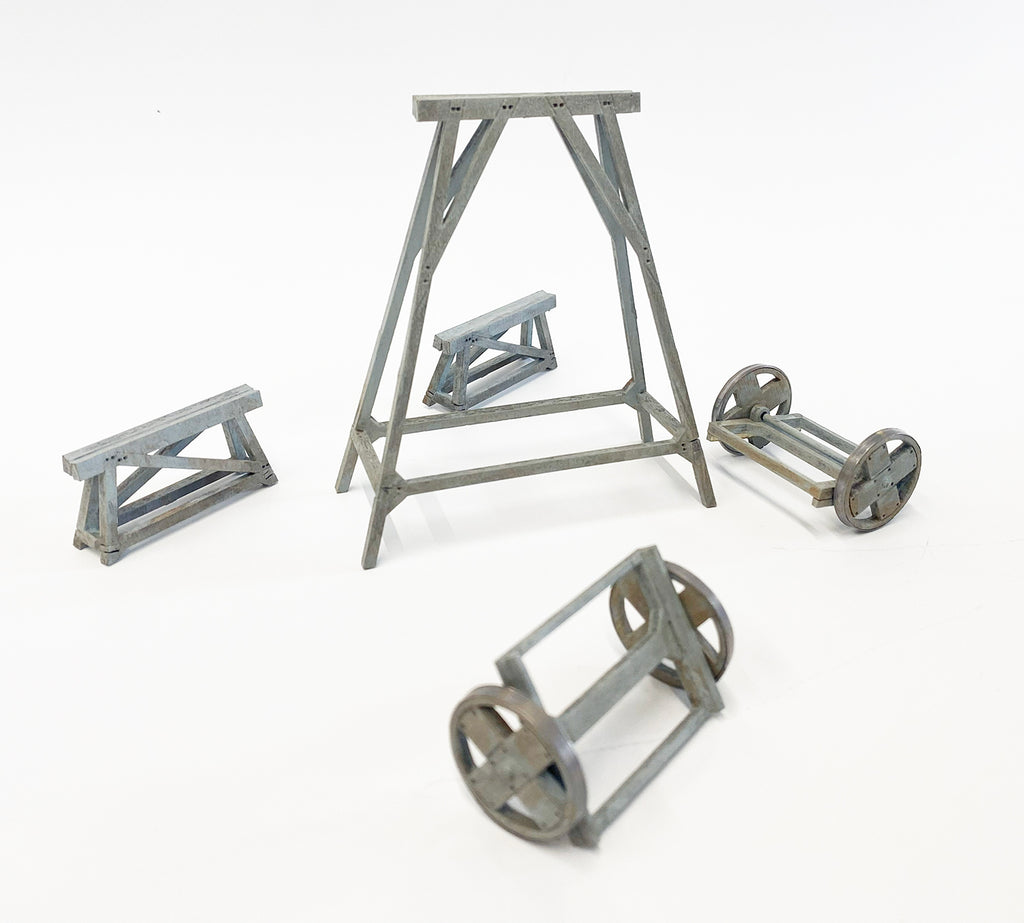

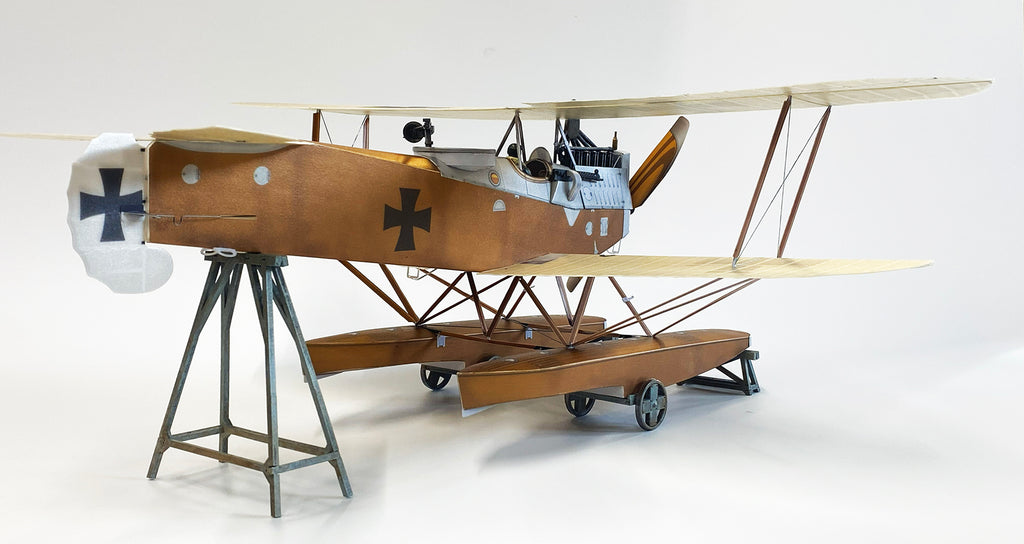

We have also created a Static Display Pack of beaching dollies and a support trestle set. It closely replicates the hardware used to move and store the real aircraft. This is available as an optional extra and can be viewed and added HERE or by clicking on the image below.

Specification

Microaces Hansa-Brandenburg W.12

Airframe	1/24th scale
Controls	Rudder, Elevator, Throttle
Length	400mm / 15.7"
Wingspan	470mm / 18.5"
Wing Area	7.25 sq dm / 112.4 sq in.
Flying Weight.	55.0g/1.9oz
Wing Load	7.59g/sq.dm / 2.49oz/sq.ft.
Rec. Receiver	Microaces 5CH Brushless AIO Receiver
Rec. Motor / G.Box*	Microaces AP05 Brushless Motor
Rec. Prop*	GWS 5030
Skill Level - Build	Intermediate
Skill Level - Pilot	Intermediate
Tools required	Scalpel, 180 Grit sandpaper or stick, straight edge, tweezers
Rec. Adhesive	Deluxe Materials Foam2Foam / Roket Odourless

*Now included in the kit

Kit Content

NOW INCLUDES	AP05 Brushless Motor
	GWS 5030 Prop and rubber prop adapter
SHEET PARTS	2mm laser cut foam Airframe
	2mm laser cut foam Float
	1mm printed & laser cut Depron fuselage
	1mm printed & laser cut Depron flight surfaces x 2
	1mm printed & laser cut Depron Floats x 2
	200 micron printed & laser cut polypropylene
	polyester stickers
	2D printed Pilot and Gunner

LOOSE PARTS	0.8mm laser cut plywood parts sheet
	Four 3mm Ø neodymium magnets
	Two 4mm Ø neodymium magnets
	1mm x 0.4mm carbon fibre strips
	2mm Ø carbon fibre rod
	pre-shaped piano wire elevator & rudder control rods

Spares & Accessories

For building and finishing your Microaces Aero Kit see our Spares & Accessories page

Assembly Guide

You can download a copy by clicking on the booklet below.
