Microaces BRUSHLESS 2S Flight Pack with SR3X Stabilization
NEW 2026 Microaces 2S Flight Pack
Brushless 2S Flight Pack with SR3X stabilization for micro scale aircraft.
Ideally suited to models 100-200g (AUW) that require light and powerful electronics with substantial thrust to weight performance.

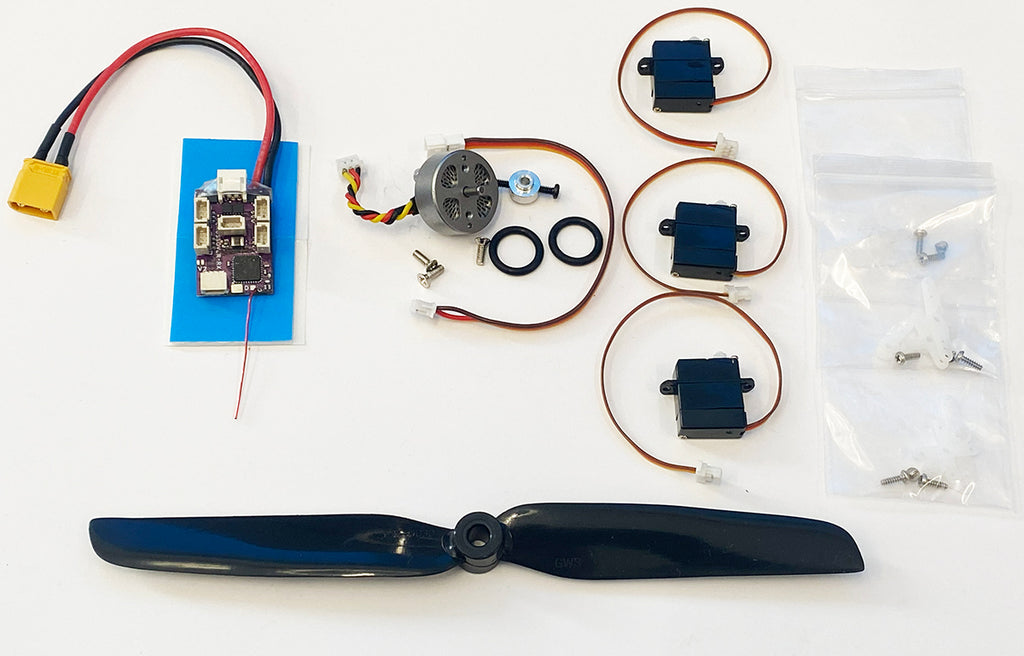

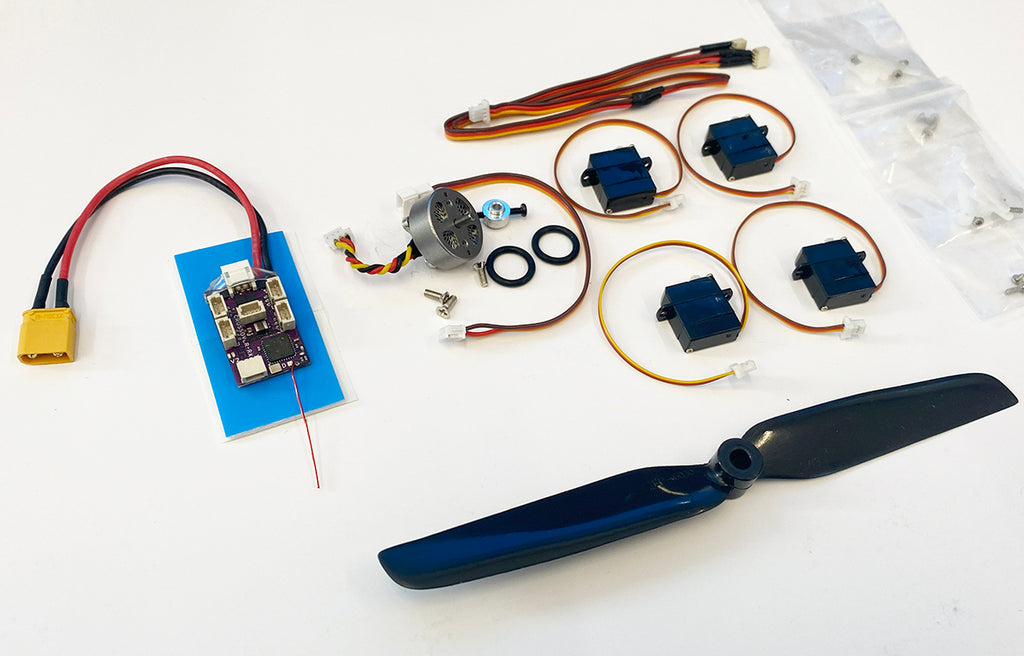

Flight Pack Contents

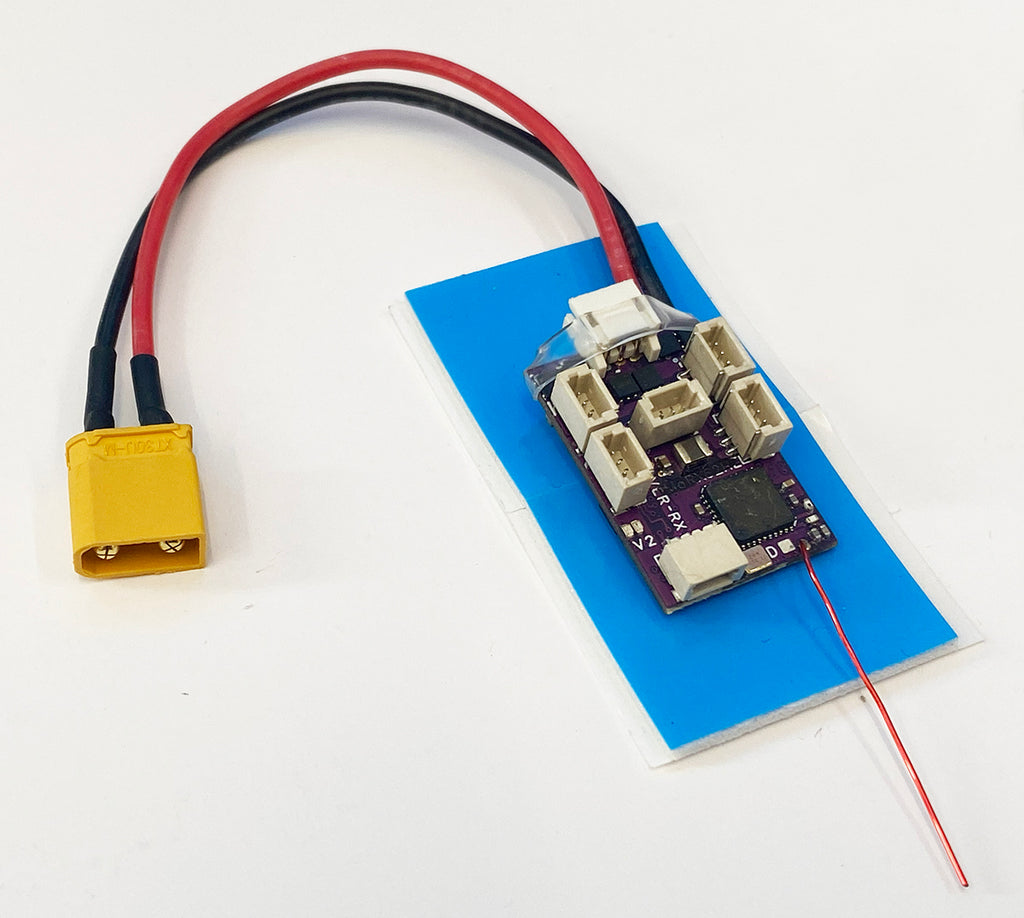

Micro 7 channel 2.4GHz receiver, with 7A Brushless ESC and SR3X Stabilization*

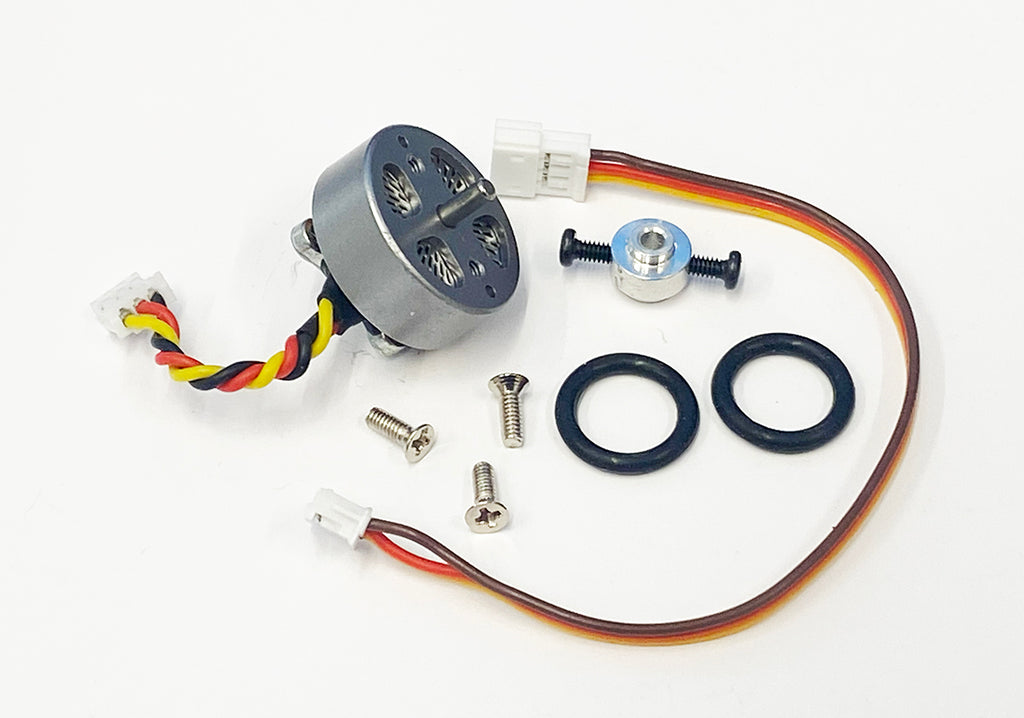

1504 2800kV Brushless Motor designed for 2S operation
Low voltage 1.7g micro digital servos with mini JST connectors (3 or 4)
GWS6030 Propeller
Aluminium prop saver
Motor mounting screws
Motor extension cable (110mm)
Servo 'Y' cable (4 servo pack only)
Double sided servo tape
Receiver binding instructions
*Requires PG02 Programming Interface Module + Crossover App to set up
The SR3X stabilization system explained:
- Two programmable levels of stabilization
- Separate gain control over each axis within each level of stabilization.
- Full control over allocation of ports on the receiver through app.
* Using PG02 USB interface tool and FREE Crossover RX app. for Windows
Specifications
Receiver dimensions (WxLxH): 16 x 24 x 6.5mm, Weight: 2.8g including leads & motor connectors. Available with Spektrum DSM2/X, Futaba S-FHSS, FrSky D16 and FlySky AFHDS-2A protocols.
Battery connector: XT30
Working Voltage: 7.4V
Motor Spec: kV 2800, Bell diameter 18.0mm Shaft length 5.0mm, Weight: 9.0g
1.7g servos provide up to 0.075kg.cm at 0.06s/60 degrees.
Recommended Battery
250-800mAh 2S 7.4V Lipo 25-90C, XT30 connector
Performance
Our own tests using GWS6030 prop and 450mAh 2S Lipo generated 188g of initial static thrust that then settled to a steady 160g at full throttle.
Download/Links
Click below to download app:
Crossover RX Windows Interface
Download Brushless Receiver Instructions
