Microaces BRUSHLESS AIO Flight Pack with SR3X Stabilization


The AIO Brushless Flight Pack is an incredibly small and lightweight BRUSHLESS solution for models from 60 to 120g.

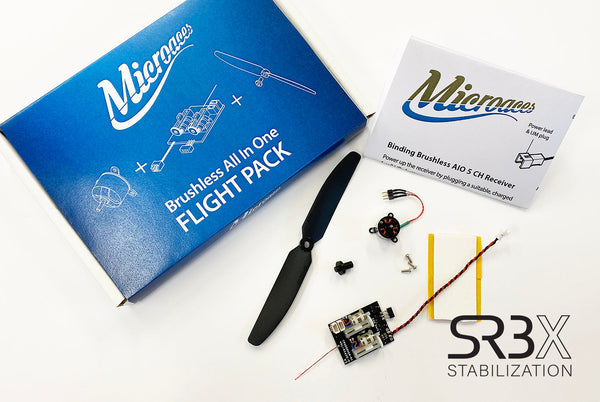

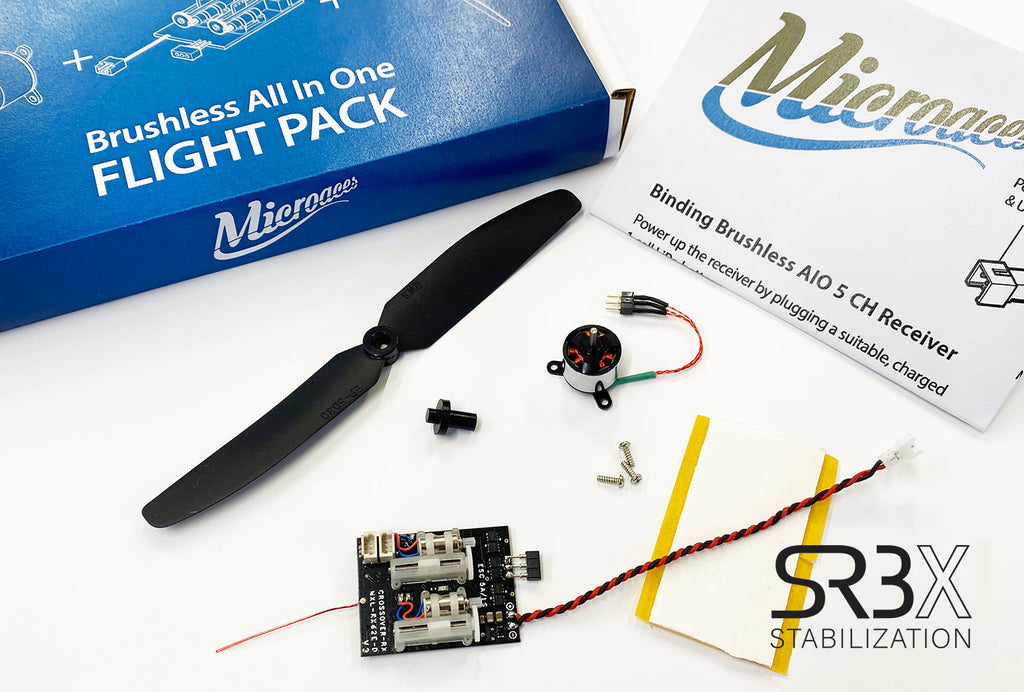

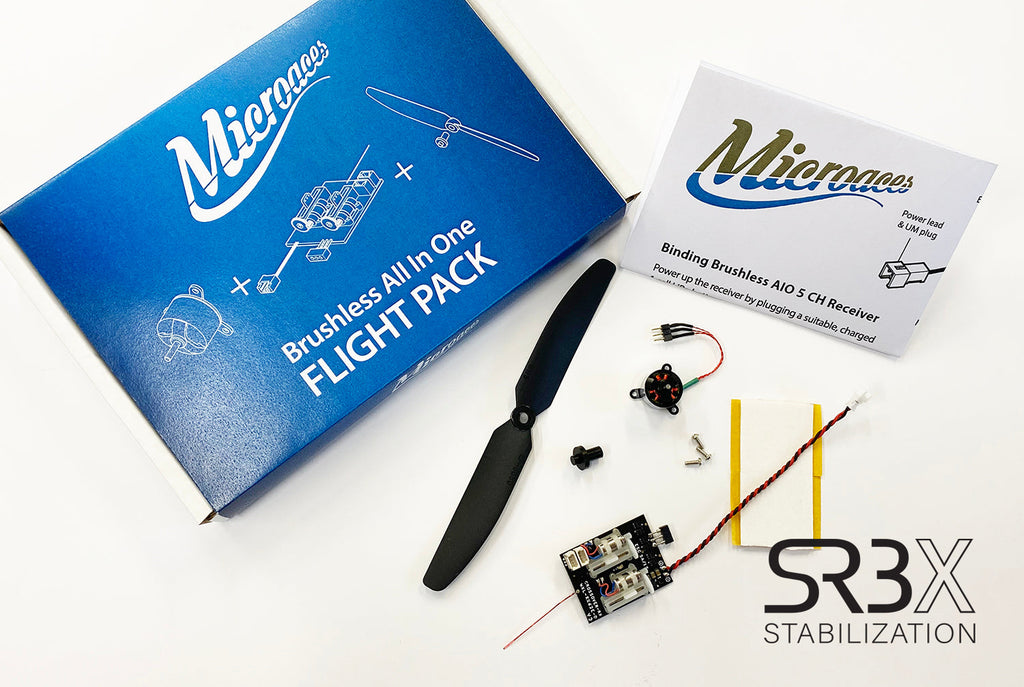

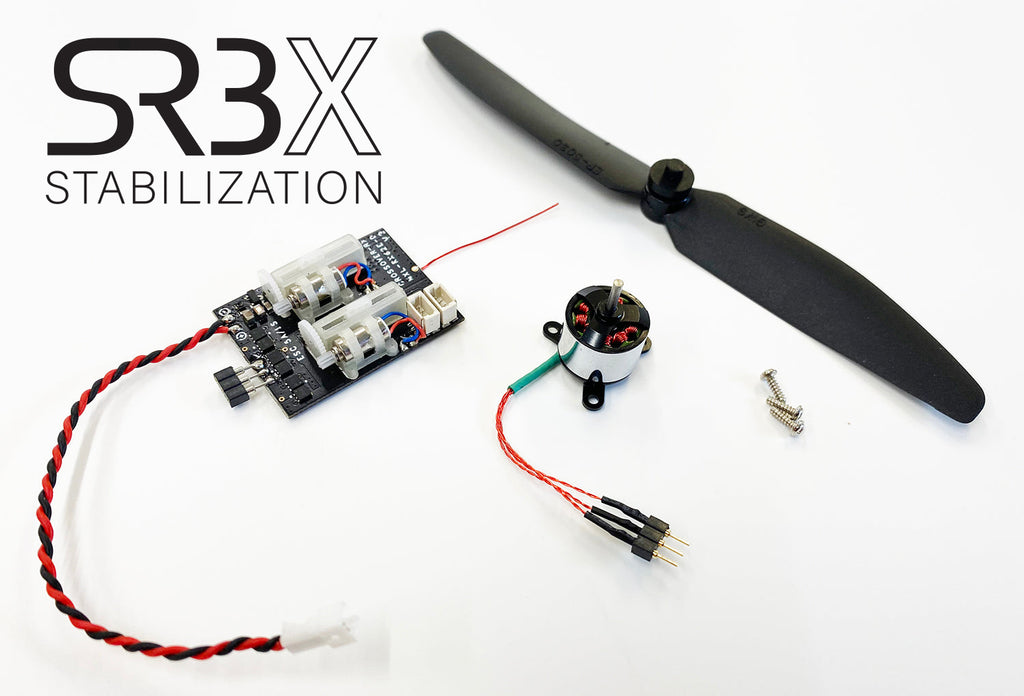

Flight Pack includes:

  • Micro All-In-One 5 channel 2.4GHz receiver with SR3X Stabilization
  • 5A Brushless ESC, AP05 5000kV Brushless Motor
  • GWS5030 prop and adapter
  • Binding Instructions
  • Servo Tape
  • Motor Mount Screws

 AND now ALSO includes an integrated and programmable* 3 axis stabilization system.

  • Two programmable levels of stabilization
  • Separate gain control over each axis within each level of stabilization.

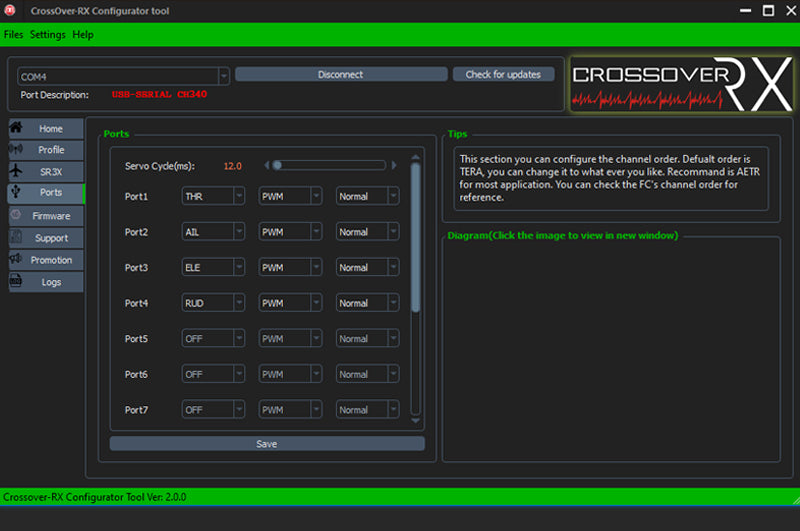

  • Full control over allocation of ports on the receiver through app.

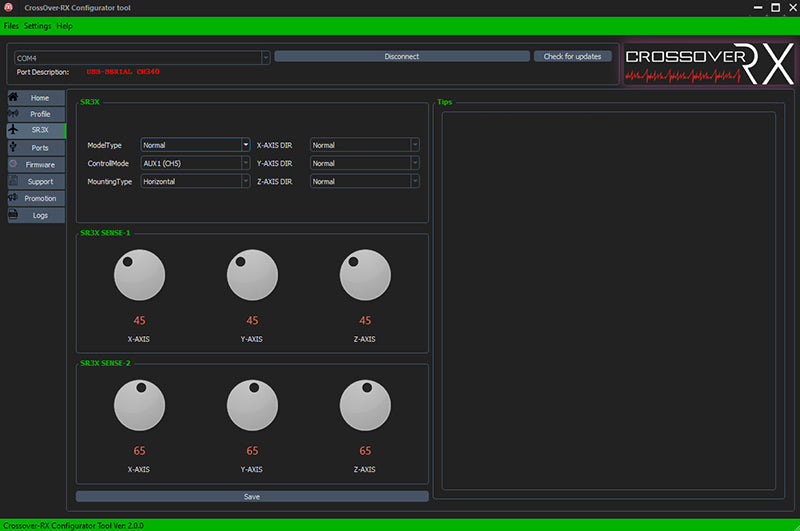

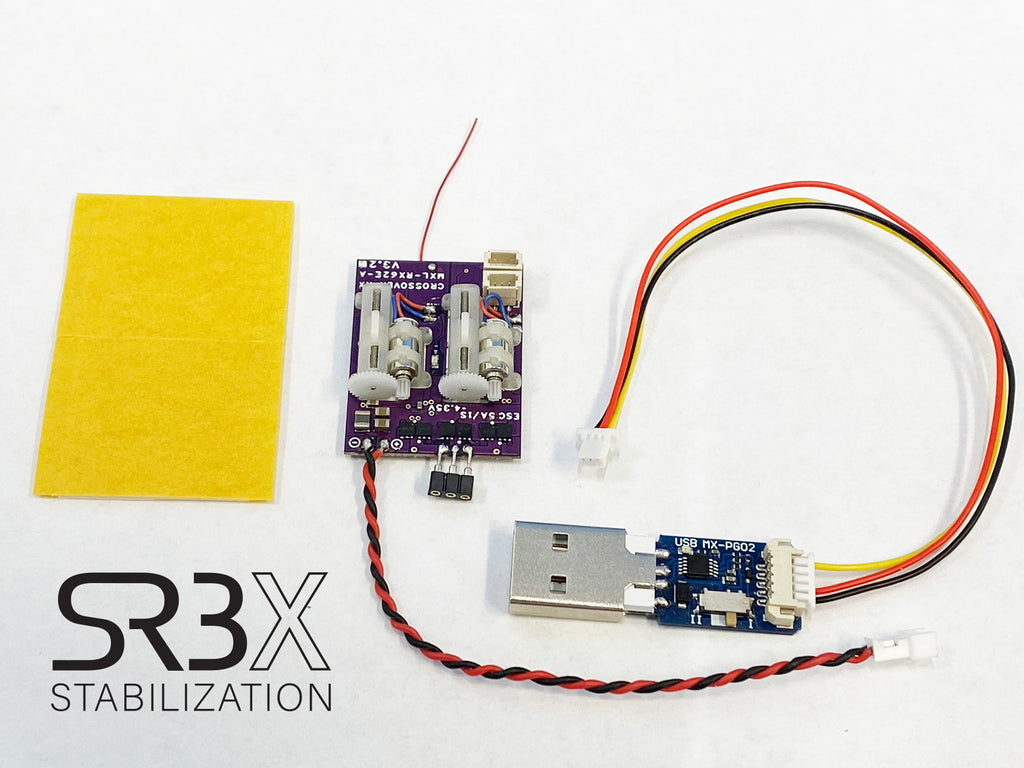

* Using PG02 USB interface tool and FREE Crossover RX app. for Windows

PLEASE NOTE: When ordering, ensure you select the correct receiver to work with your transmitter. If unsure, check your transmitter instruction manual to find out which protocol(s) it uses. Then select the compatible receiver protocol from the drop down menu above or pick the type you require here:

DSM2/X Compat. S-FHSS Compat. FrSky D8 Compat.  FrSky D16 Compat. FlySky AFHDS 2A Compat.


Compatible Servos

If you're wanting to use the servo sockets on this AIO receiver for aileron control  then our Micro Servos are ideal for the task.





AIO BRUSHLESS Receiver Specification

Size:  24mm x 32mm x 8.5mm
Weight: 4.4g
Voltage: 3.5 - 5.0v
ESC: Brushless 5A
Servo arm travel: 7mm
Pull: 35g @ 4.2v
Plug/Socket type: Servo:JST-SH | Battery:UM Type | Motor: 3 Pin 2.0mm pitch
Compatibility: DSM2/X, S-FHSS, D8, D16 or AFHDS 2A protocols
Suitability: For micro models up to aprox. 120g



Click below to download app:

Crossover RX Windows Interface
