Microaces BRUSHLESS Flight Pack with SR3X Stabilization - 4 Servo


Brushless 1S Flight Pack with SR3X stabilization for micro scale aircraft.


Micro 5 channel 2.4GHz receiver, with 5A Brushless ESC  with SR3X Stabilization

AP05 5000kV Brushless Motor designed for 1S operation

GWS5030 prop and adapter generates 50-60g thrust

4 low voltage 1.7g micro digital servos with mini JST connectors

An incredibly small and lightweight package for models from 60 to 120g.

AND now ALSO includes a programmable* 3 axis stabilization system, integrated into the receiver.

  • Two programmable levels of stabilization
  • Separate gain control over each axis within each level of stabilization.
  • Full control over allocation of ports on the receiver through app.

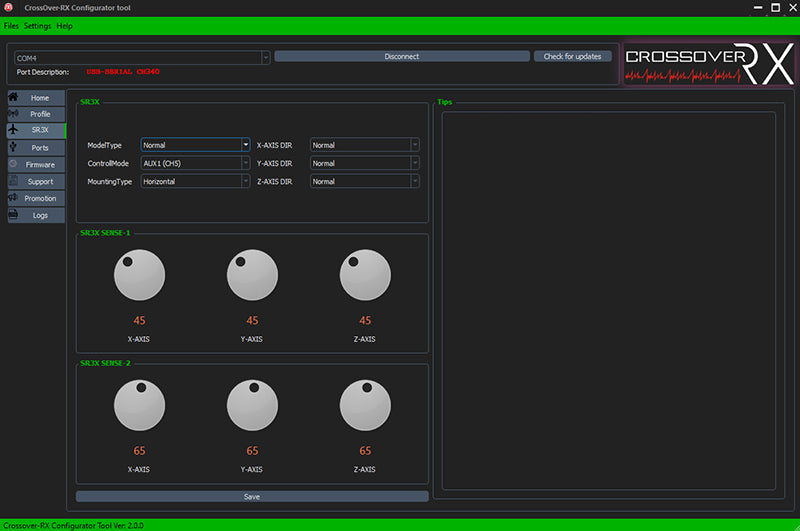

* Using PG02 USB interface tool and FREE Crossover RX app. for Windows

Receiver dimensions (WxLxH): 12 x 22 x 6.5mm, Weight: 1.7g including leads & motor connectors.

Motor dimensions (LxD): 18.3 x 13.0mm, Weight: 5.4g

Available with Spektrum DSM2/X, Futaba S-FHSS, FrSky D8 or D16 protocols.

1.7g servos provide up to 0.075kg.cm at 0.06s/60 degrees.

Recommended Battery:

150-300mAh 1S 3.7V Lipo 25-45C (Example E-Flite EFLB1501S45)


Click below to download app:

Crossover RX Windows Interface

Download Brushless Receiver Instructions
